Specialist Applications
Non-Standard Heating Requirements
Cross Electrical (Nottingham) Ltd provide specialist solutions for all applications. With our experience and expertise we are able to provide a customised solution for any unique project.
Supply Voltage
We can provide trace heating systems to operate on any AC or DC supply voltage from 12 volts to 500 volts
Process / surface temperatures
Temperature maintenance and surface temperatures can be achieved from 0 to 500°C when designing trace heating systems for process applications.
Other specialist applications include:
F1 McLaren Water Tanks
Zoo Animal Enclosures including Lion & Sun Bear
Reptile Enclosures
Cat & Dog Bed Heating
Hydrogen Refuelling Stations
Large Diameter Pipes
Small Bore Tubing & Flexible Hoses
Large Tanks & Vessels
Small & Large Containers
Pumps ~ Valves ~ Filters ~ Flow Meters
Road tankers (Overnight Maintain)
Tank Immersion Heaters
Heating grids

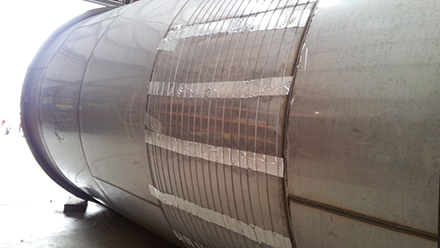

Heating cables can be formed and secured to weldmesh or perforated sheet for heating grids of any size and shape with heat outputs in watts per square metre up to 1000 watts.
Heating grids can be secured to vessels walls or installed internally on the base of the vessel. The immersed heating grids are an excellent solution for rapid heat-up of products within the tank or vessel.
We have the resources to make available a synchronized package to completely satisfy any particular requirement in Electrical Trace Heating.
If there is anything you require which is not mentioned above, please do get in touch with us, there is a solution and Cross Electrical will consult with you to find the result to meet all of your needs and requirements.
Internal trace heating
Internals can be installed in 6mm to 1000mm diameter pipework, using single or three phase systems in circuit length up to 1000 metres.
By placing a direct heat source into a product, the temperature raising response time and efficiency is significantly improved.
Internal trace heating can be used when renewing existing systems with no necessity to remove the thermal insulation.
Heating cables are not subjected to corrosion from external sources and minimises mechanical damage.
From design and consultancy right through to supply, installation and maintenance, Cross Electrical are here to help you
